Clear span fabricated steel barn prefab metal hall

جزئیات محصول

محل منبع: چینگدائو، چین

نام تجاری: KXD

گواهی: CE, ISO, SGS

شماره مدل: S-0042

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 500 متر مربع

قیمت: US$ 50-80 per square meter

جزئیات بسته بندی: بخش عمده ای برای پانل های فولادی ، پالت فولادی برای ساختار فولادی ، جعبه چوبی برای لوازم جانبی نصب ک

زمان تحویل: 30-40 روز کاری

شرایط پرداخت: L/C، T/T

قابلیت ارائه: 3000 تن در ماه

بهترین قیمت رو بدست بیار
جزئیات محصول
برجسته کردن:
ابعاد:
نیاز مشتریان
در:
درب کشویی یا درب غلتکی
رنگ:
درخواست مشتری
بازدید:
بازدید از کارگاه و بررسی موجود
سطح:
گالوانیزه / رنگ آمیزی گرم
قاب:
ساختار فولاد
طول عمر:
بیش از 50 سال
نوع ساختار:
قاب ساختار فولادی با استحکام بالا
شماره مدل:
KXD-SSB130
پیش ساخته:
خارج از سایت
نصب:
سریع
ابعاد:
نیاز مشتریان
در:
درب کشویی یا درب غلتکی
رنگ:
درخواست مشتری
بازدید:
بازدید از کارگاه و بررسی موجود
سطح:
گالوانیزه / رنگ آمیزی گرم
قاب:
ساختار فولاد
طول عمر:
بیش از 50 سال
نوع ساختار:
قاب ساختار فولادی با استحکام بالا
شماره مدل:
KXD-SSB130
پیش ساخته:
خارج از سایت
نصب:
سریع
توضیحات محصول

Steel Stucture Building Description:

Prefab steel structure house is generally done with a series of steel structure, including steel columns, steel beams, purlin and so on. These main components constitute the load-bearing structure of the house. Due to light weight and easy construction, there is a great demand for the structural steel house. The steel structure house, the most cost-efficient building, which plays one important role in construction field.

Nuts and Bolts are often considered to be an insignificant part of steel structure building, but this little part makes a big difference. Nuts and Bolts are the primary tools used to hold together the pieces of PEB construction together. There are numerous kinds of nuts and bolts available in the market for construction purposes, and they play a significant role in the PEB companies and industries. So the quality is also important in the whole buildings structure. Thus, screws are essentially important to hold the whole premise of Pre-engineered Steel Buildings together.

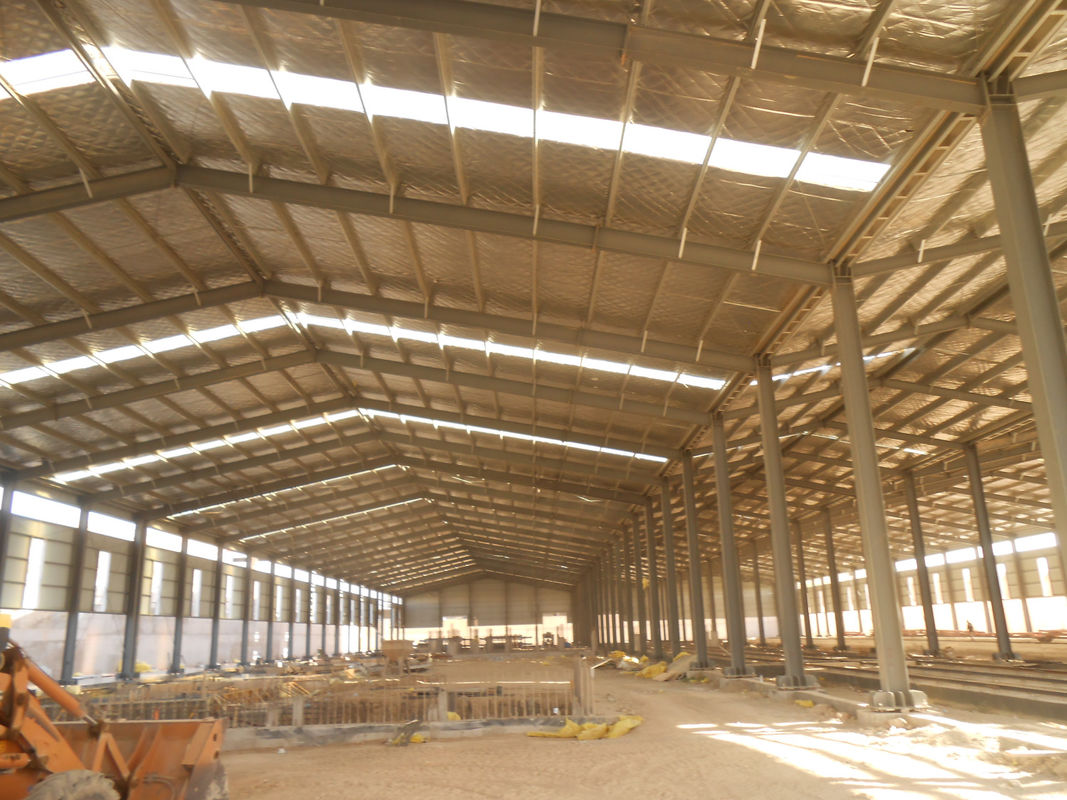

Clear span fabricated steel barn prefab metal hall 0

Items

Specification

Main steel frame Column

Q355 Welded H Section Steel (equivalent to S355JR, ASTM A572 Gr. 50)

Beam

Q355 Welded H Section Steel (equivalent to S355JR, ASTM A572 Gr. 50)

Secondary Frame Purlin

Q235 C and Z purlin (equivalent to S235JR, ASTM A36)

knee bracing

Q235 Angle Steel (equivalent to S235JR, ASTM A36)

tie beam

Q235 Circular Steel Pipe (equivalent to S235JR, ASTM A36)

bracing

Q235 Round Bar (equivalent to S235JR, ASTM A36)

Cladding system Roof Panel

Insulated Sandwich Panel/ Corrugated Steel Sheet/ Skylight/ Ventilator

Wall Panel

Insulated Sandwich Panel/ Corrugated Steel Sheet/Glass curtain wall/ Parapet

Window

Aluminiumn Alloy Window/ PVC Window/ Sandwich Panel Window

Door

Sliding Sandwich Panel Door/ Rolling Metal Door/ Personal Door

steel structure service liftetime

50-70 years


KXD Company Service:

Visit and Check Service

You are warmly welcome to visit our factory before the order, during the production and in the loading.

Flexible Payment

Different payment term like T/T, LC, with FOB, CIF, CFR on options.

Design Service

For products, we accept the production exactly same as your own drawing details. Different standards or the equivalent exchange are both acceptable.

If you have only ideas, we could offer free architectural design and production for you.

Production Service

All raw materials are purchased from qualified mills and the materials quality should be checked when received.
Quality control will be done in each production progress to guarantee every steel component quality. And each component will packed and protected before the shippment.

Installation Support

We offer free assemble guide and solve any technical questions in the installing time.

If the client has the demands, we could also send our engineer to guide or send our installing team to install on site. Different plans are for clients' option.


KXD's Design Ability:

Our elite steel structure technology team is a repository of expertise and dedication, consisting of skilled technicians, meticulous manufacturers, and master welders. With vast expertise in all facets of steel structure technology, we promise precise and reliable technical support for complex warehouses, manufacturing plants, and commercial centers.

Clear span fabricated steel barn prefab metal hall 1

KXD's Production Ability:

Armed with cutting-edge tools and adhering to industry-leading standards, we ensure the structural integrity and premier performance of each creation. Driven by innovation, we merge unwavering professional ethics with an unstoppable drive to transform intricate engineering specifications into extraordinary steel masterpieces.

Clear span fabricated steel barn prefab metal hall 2

Clear span fabricated steel barn prefab metal hall 3

Welcome to Contact further & Visit!
